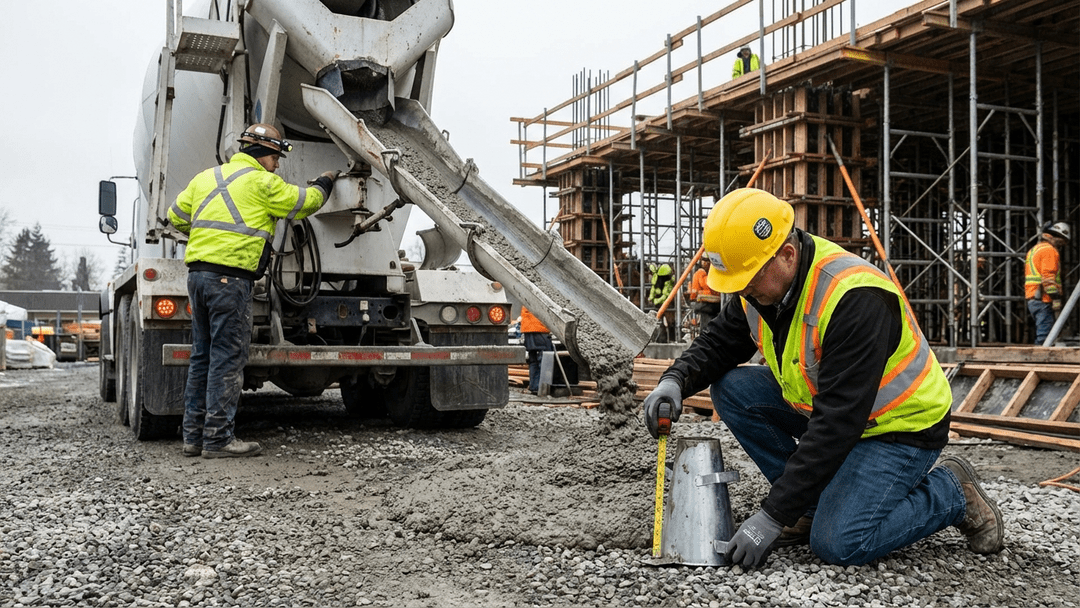

In the ready-mix concrete business, consistency is king. When a customer rejects a load because of an uneven concrete mix—with streaks of sand, aggregate clumps, or inconsistent slump—it’s a direct hit to your bottom line and your reputation. The immediate question for any fleet manager is: what caused it? The two most common culprits within the mixer truck itself are the internal drum blades and the drum rollers. While they seem unrelated, a problem with either can lead to poor quality concrete.
This guide provides a diagnostic flowchart to help you determine whether your mixing problem stems from worn blades or a malfunctioning roller system, enabling you to fix the right problem the first time.
The Role of Drum Blades and Rollers in Mix Quality
It’s crucial to first understand how each component contributes to the mix.
- Drum Blades (or Fins): These are the helical steel plates welded to the inside of the drum. Their job is to lift, tumble, and fold the materials, ensuring that cement paste, sand, and aggregate are thoroughly and evenly combined. If these blades are worn down, they can no longer perform this lifting and folding action effectively.
- Drum Rollers: These components support the drum and ensure it rotates at a smooth, consistent speed. If the rollers are worn, damaged, or seized, they can cause jerky, uneven rotation or a change in the drum’s angle, which disrupts the mixing action.
Diagnostic Flowchart: Uneven Concrete Mix – Blades or Rollers?
When faced with a report of an uneven mix, follow this step-by-step diagnostic process:
Step 1: Operator Interview
Before you even look at the truck, ask the operator two key questions:
- “Did you notice any unusual vibration or hear any grinding/banging noises during the trip?” (Points towards a roller/mechanical issue).
- “Has the concrete been taking longer to discharge recently?” (Points towards a blade issue, as worn blades are less effective at pushing the concrete out).
Step 2: Visual Inspection (Exterior)
Conduct a walk-around of the stationary truck.
- Inspect the Rollers: Look for visible cracks, flat spots, or deep grooves on the roller surfaces. A flat spot will create a “bump” with every rotation, disrupting the smooth mixing action.
- Watch the Rotation: Have the operator run the drum at mixing speed. Is the rotation smooth and steady, or is it jerky and erratic? A jerky motion strongly suggests a roller or drive system problem.
Step 3: Visual Inspection (Interior) – The Blade Test
This is the definitive test for blade wear. After ensuring the drum is empty and safely locked out, look inside.
- The Height Test: The mixing blades should have a significant height, typically 400-500mm. If the blades are worn down to half their original height or less, they have lost their ability to properly mix the concrete. The material will slide along the drum wall instead of being lifted and tumbled.
- The “Gunk” Test: Look for a buildup of hardened concrete (gunk) at the base of the blades. This is a sign that the blades are no longer creating enough agitation to keep the material in suspension.
| Observation | Likely Culprit | Recommended Action |
|---|---|---|
| Jerky rotation, visible roller damage, operator reports vibration. | Rollers | The uneven rotation is preventing the blades from doing their job. Replace the worn rollers with quality parts such as the NES007 for Putzmeister or NES009 for TFM. |
| Smooth rotation, but blades are visibly worn down. | Drum Blades | The drum rotates correctly, but the worn blades can’t create the necessary mixing action. Schedule a blade repair or replacement. |
| Operator reports slow discharge, blades look worn. | Drum Blades | Worn blades are inefficient at both mixing and discharging. This indicates that blade maintenance is overdue. |
| Everything looks fine, but the problem persists. | Other Factors | Look beyond the drum: check the loading sequence at the batch plant, verify water content, and inspect the hydraulic drive motor for inconsistent rotation speed. |
Interpreting the Results
Here’s the information organized into a clear markdown table:DIY Video Inspection Technique
For a quick and safe internal inspection, use your smartphone. After the drum is washed out, securely tape your phone (with the flashlight and video recording on) to a long pole. Carefully insert the pole into the drum opening and slowly rotate it to get a clear video of the entire length of the blades. This avoids the need for confined space entry for a simple inspection.
Conclusion
Troubleshooting an uneven concrete mix doesn’t have to be a guessing game. By following a logical diagnostic process, you can efficiently pinpoint the root cause. While worn drum blades are the most frequent cause of poor mix quality, a faulty roller system can be a significant contributing factor.
Start with the operator, inspect the rollers for smooth operation, and then verify the condition of your blades. This systematic approach will save you time and money, ensuring that you are fixing the right component and getting your trucks back on the road delivering the high-quality, consistent concrete your customers expect. For all your replacement roller and mixer component needs, trust Nsimbi Engineering Solutions to provide durable, reliable parts. Our services include maintenance and inspections.
