In the concrete batching industry, precision isn’t just a luxury—it’s a requirement. The LT1240 indicator plays a vital role in ensuring that every batch of concrete meets the exact specifications demanded by modern construction projects. Whether you’re managing a small plant or a large-scale operation, understanding how this precision instrument works can help you improve efficiency and product quality.
What Is the LT1240 Indicator?
The LT1240 indicator is a precision digital indicator designed specifically for load cell and strain gauge applications. In a concrete batching plant, it connects directly to load cells mounted on aggregate hoppers, cement silos, and water tanks to provide accurate, real-time weight readings .
Featuring a high-bright 6-digit 14-segment LED display, the LT1240 indicator ensures readings are clearly visible even in challenging outdoor lighting conditions often found at batching plant sites . Its simple menu system with built-in help hints allows for straightforward configuration of display and load cell settings, making it accessible for plant operators of all experience levels.
Why the LT1240 Indicator Matters in Concrete Batching
Concrete is made up of several key ingredients: cement, aggregates (sand and stone), water, and admixtures. Each component must be measured precisely to achieve the required strength and durability. Here’s how the LT1240 indicator contributes to this process:
Accurate Weighing: The LT1240 indicator receives signals from load cells that measure the weight of materials as they are discharged into the mixer. This ensures that each ingredient is added in the correct proportion, meeting strict mix design specifications.
Quality Control: By providing reliable weight data, the LT1240 indicator helps batching plant operators maintain consistent concrete quality from batch to batch, reducing waste and preventing costly rework.
Inventory Management: When connected to silo load cells, the LT1240 indicator helps track cement and aggregate levels, allowing plant managers to plan reorders efficiently and avoid unexpected shortages.
Key Features of the LT1240 Indicator for Batching Plants
Precision Front-End Circuitry: The LT1240 indicator contains precision front-end circuitry for high accuracy and stability, essential for the demanding environment of a concrete batching plant where vibration and dust are common.
Load Cell Compatibility: The LT1240 indicator can power up to 4 x 350Ω load cells at 10V excitation and provides Kelvin sensed feedback to compensate for cable loss . It interfaces with both 4-wire and 6-wire devices, offering flexibility in system design.
Flexible Power Options: A universal mains switch mode power supply (85-264 VAC) comes as standard, but optional low voltage (10-30 VDC) or high voltage (25-70 VDC) isolated power supplies can be installed as needed for plant-specific requirements.
Robust Communication: RS232 communications come standard with Modbus RTU and Modbus ASCII protocol support, allowing the LT1240 indicator to integrate seamlessly with plant control systems. An optional RS485 interface can be added alongside the standard RS232 for more complex setups.
Environmental Protection: The LT1240 indicator is designed to withstand harsh conditions, with a panel mount design that fits standard industrial enclosures used in batching plants.

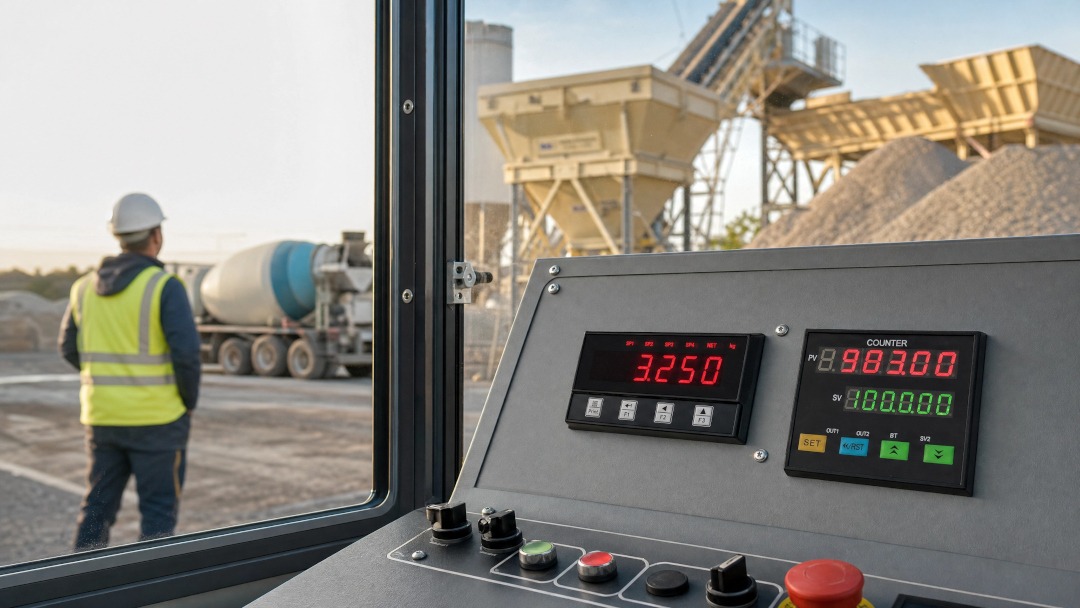

MYPIN Counter: Complementing the LT1240 in Batching Operations
While the LT1240 indicator handles weight display, MYPIN counters provide valuable additional functionality in concrete batching plants. These counter/length/batch meters can be used to:
-
Track total batches produced over a shift, day, or month
-
Count trucks loaded with concrete for dispatch
-
Monitor production targets against actual output
MYPIN counters feature 4 or 6 digit LED display options, preset value capability for automated control, counting speeds up to 5000 CPS, and power failure protection for at least 10 years . These devices are widely applied in chemical, machine, and light industrial settings, including concrete production facilities.
LT1240 Indicator Specifications Summary
| Feature | Specification |
|---|---|
| Display | 6-digit 14-segment LED |
| Load Cell Excitation | 5 or 10 VDC field selectable |
| Max Load Cells | 4 x 350Ω at 10V |
| Standard Communication | RS232 (Modbus RTU, ASCII) |
| Optional Communication | RS485 |
| Power Supply Standard | 85-264 VAC |
| Optional Power | 10-30 VDC or 25-70 VDC |
| Auto-Zero Tracking | Yes |
| Digital Filtering | Advanced |
| Security | Menu lockout |
Optimising Your Batching Plant with the LT1240 Indicator
For best results with your LT1240 indicator in a concrete batching environment, consider these installation tips:
- Use shielded cables for long signal cable distances to avoid interference from motors and other heavy equipment common in batching plants
- Separate signal cables from power supply cables during installation to prevent electrical noise
- Calibrate properly using known weights or directly from load cell calibration certificates to ensure batch accuracy
- Regular maintenance should include checking connections and verifying calibration to maintain consistent performance
Whether you’re building a new concrete batching plant or upgrading existing equipment, the LT1240 indicator provides reliable, accurate weight display with flexibility to meet diverse operational needs. Its combination of precision circuitry, robust features, and communication options makes it a solid choice for weighing applications in concrete production. When paired with complementary equipment like MYPIN counters, complete measurement and control systems can be built to handle demanding batching processes with confidence.
